TASK C :

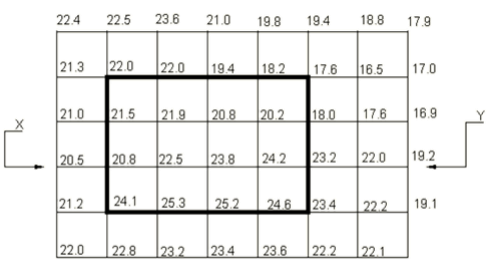

Volumes Reduced levels taken from total station 20m x 20m grid
Draw a section from X-Y Contour the grid with a 1 metre interval.
Determine the volume of cut material to be removed to obtain a flat formation level (FFL) of 20m within the highlighted part of the grid.
To find the volume of each individual ‘cube’, find the average of the four corners (for each cube), remove the 20m FFL and multiply by the area of the square.
