COM645 Cisco Packet Tracer Assignment: Wrexham Network Configuration and RIP v2 Routing Case Study
| University | Wrexham University |
| Subject | COM645 Network Security |
Assessment task details – provide a description of the task
Configuring network devices base on the assignment brie
Hints and tips
All submitted work is expected to observe academic standards in terms of referencing, academic writing, use of language etc. Failure to adhere to these instructions may result in your work being awarded a lower grade than it would otherwise deserve.
By submitting the coursework, you certify that, other than where collaboration has been explicitly permitted, this work is the result of your individual effort and that all sources for materials have been acknowledged. You also confirm that you have read and understood the codes of practice on plagiarism contained within the Wrexham Academic Regulations and that, you are agreeing to be dealt with accordingly in any case of suspected unfair practice. You also certify that my attendance for the module has been at least 70%.
Marking and moderation
Moderation.
Employability Skills Applied
On successful completion of this module, a student will have had opportunities to demonstrate achievement of the following Employability Skills:
CORE ATTRIBUTES
- Engaged *
- Creative *
- Enterprising
- Ethical
KEY ATTITUDES
- Commitment *
- Curiosity
- Resilient *
- Confidence *
- Adaptability
PRACTICAL SKILLSETS
- Digital fluency
- Organisation *
- Leadership and team working
- Critical thinking *
- Emotional intelligence
- Communication
Marking criteria
Based on the assignment brief.
Assessment Objectives
- Part 1: Network Topology Build [using Packet Tracer] (10 points, 10 minutes)
- Part 2: Network Design (50 points, 35 minutes)
- Part 3: Device Configurations and Settings (50 points, 30 minutes)
- Part 4: Configure RIP version 2 Routing Protocol (30 points, 25 minutes)
- Part 5: Verify end-to-end Network Connectivity (10 points, 10 minutes)
- Part 6: Set-up and Configure HTTP Services (20 points, 15 minutes)
- Part 7: Create and Apply Extended ACLs (40 points, 20 minutes)
- Part 8: Housekeeping/ Save and upload Configuration or Packet Tracer Files. (5 points, 5 minutes)
Practical test: Network Protocols and Algorithms (150 minutes)

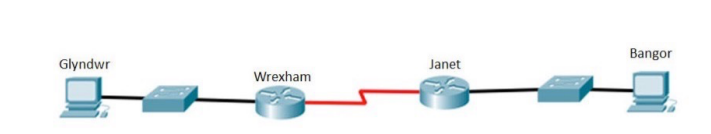

Part 1: Network Topology Build [using Packet Tracer]
![Part 1: Network Topology Build [using Packet Tracer]](https://www.studentsassignmenthelp.co.uk/wp-content/uploads/2025/05/Screenshot-2025-05-06-105149.png)
Do You Need Assignment of This Question
Part 2: Network Design
In this practical skills assessment (SA), you are the network administrator of a new network build. There is only 1 IP address available for this network – 192.168.33.X where X = 0 to 255.
You are required to work out an addressing scheme that will allow this network to be configured. Make sure you conserve IP addresses. There are 12 hosts in Bangor and 12 hosts at Glyndwr.
Addressing Table
Calculate the network Masks and fill in the addressing table below:
| Device | Interface | IP Address | Subnet Mask | Default Gateway |
|---|---|---|---|---|
| Wrexham Router | ||||
| Glyndwr Workstation | ||||
| Janet Router | ||||
| Bangor Workstation |
Part 3: Device Configurations and Settings
Step 1: Configure Wrexham Router.
Configuration tasks for Wrexham-Router include the following:
| Configuration Item or Task | Specification | Points |
|---|---|---|
| Disable DNS lookup | (2 points) | |
| Set the Router name | Wrexham-Router | (1 point) |
| Encrypted privileged EXEC password | class | (2 points) |
| Console access password | cisco | (1 point) |
| Telnet access password | cisco | (2 points) |
| Encrypt the plaintext passwords. | (2 points) | |
| Set the “message of the day” MOTD banner | Welcome to the Wrexham Router. Unauthorized Access is Prohibited! | (3 points) |
| Interface Fa0/1 | Set the Layer 3 IPv4 address. Refer to the Addressing Table for IPv4 address information. Activate Interface | (5 points) |
| Interface S 0/1 | Set the Layer 3 IPv4 address. Refer to the Addressing Table for IPv4 address information. Set a clocking rate of 128000. Activate Interface | (5 points) |
Step 2: Configure Janet Router.
Configuration tasks for Janet-Router include the following:
| Configuration Item or Task | Specification | Points |
|---|---|---|
| Disable DNS lookup | (2 points) | |
| Set the Router name | Janet-Router | (1 point) |
| Encrypted privileged EXEC password | class | (2 points) |
| Console access password | cisco | (1 point) |
| Telnet access password | cisco | (2 points) |
| Encrypt the plaintext passwords. | (2 points) | |
| Set the “message of the day” MOTD banner | Welcome to the Janet Router. Unauthorized Access is Prohibited! | (3 points) |
| Interface Fa0/1 | Set the description Set the Layer 3 IPv4 address. Refer to the Addressing Table for IPv4 address information. Activate Interface | (5 points) |
| Interface S 0/1 | Set the description Set the Layer 3 IPv4 address. Refer to the Addressing Table for IPv4 address information. Set a clocking rate of 128000. Activate Interface | (5 points) |
Step 3: Configure IPv4 addresses on Glyndwr and Bangor
| Configuration Item or Task | Specification | Points |
|---|---|---|
| Configure static IPv4 address information on Glyndwr | Refer to Addressing Table for IPv4 address information. | (2 points) |
| Configure static IPv4 address information on Bangor | Refer to Addressing Table for IPv4 address information. | (2 points) |
Part 4: Configure RIP version 2 Routing Protocol
Step 1: Configure RIP version 2 on Wrexham Router.
Configuration tasks for Wrexham Router include the following:
| Configuration Item or Task | Specification | Points |
|---|---|---|
| Advertise directly connected networks. | Use classless network addresses. | (15 points) |
Buy Answer of This Assessment & Raise Your Grades
Step 2: Configure RIP version 2 on Janet Router.
Configuration tasks for Janet Router include the following:
| Configuration Item or Task | Specification | Points |
|---|---|---|
| Advertise directly connected networks. | Use classless network addresses. | (15 points) |
Part 5: Verify end-to-end connectivity [Please include screen shots].
| From Command | To | Response/ Screenshot evidence: | Points |
|---|---|---|---|
| Glyndwr ping | Wrexham/ Default Gateway | (3 points) | |
| Bangor ping | Janet/ Default Gateway | (3 points) | |
| Glyndwr ping | Bangor | (2 points) | |
| Bangor ping | Glyndwr | (2 points) |
Part 6: Set-up and Configure HTTP Services
| Configuration Item or Task | Response/ Screenshot evidence | Points |
|---|---|---|
| On the Bangor side add a server, (NOT ANOTHER PC) – ensure HTTP is enabled | (15 points) | |
| Test Access from Wrexham PC by entering the server IP address in the web browser. | (2 points) | |
| Insert Screen shot of Wrexham PC displaying web page | (3 points) |
Part 7: Insert an Extended ACL to Prevent access to HTTP from Glyndwr
| Configuration Item or Task | Points |
|---|---|
| Design an ACL to Prevent access to HTTP (port 80) from the Ethernet interface hosts i.e. stop traffic from Glyndwr reaching the HTTP server you added in Part 6, but permit all other traffic (e.g. ICMP). | (25 points) |
| Test the ACL. When it has been blocked Insert screen shot | (15 points) |
Part 8: Housekeeping/ Save Configuration/ Packet Tracer Files
| Configuration Item or Task | Points |
|---|---|
| Save this document with your screen shots | (3 points) |
| Save the Packet Tracer file | (1 point) |
| Upload both to Moodle | (1 point) |
